JAFO Jarocin – Milling Machines
Modern CNC Machines in the MARAT Group
Since 1946, JAFO Jarocin has been setting standards in the production of metal milling machines. As part of the Marat Group, we combine traditional machine tools with modern CNC control systems and global technical support.
Send Inquiry for an Offer CNC Machine Tool Manufacturer – JAFO Jarocin Tradition
Jarocin Machine Tool Factory (JAFO) is a legendary manufacturer of metal machine tools in Poland. Our milling machines and lathes have been working in thousands of plants for decades, renowned for their unmatched rigidity and durability. Joining the MARAT Group allowed us to combine experience with modernity – we now offer advanced CNC machines, professional machine tool service, and comprehensive care for your machinery fleet.
Flagship CNC Machines – JAFO Milling Machines and Lathes
Discover the selection of JAFO's most popular solutions manufactured in Jarocin.

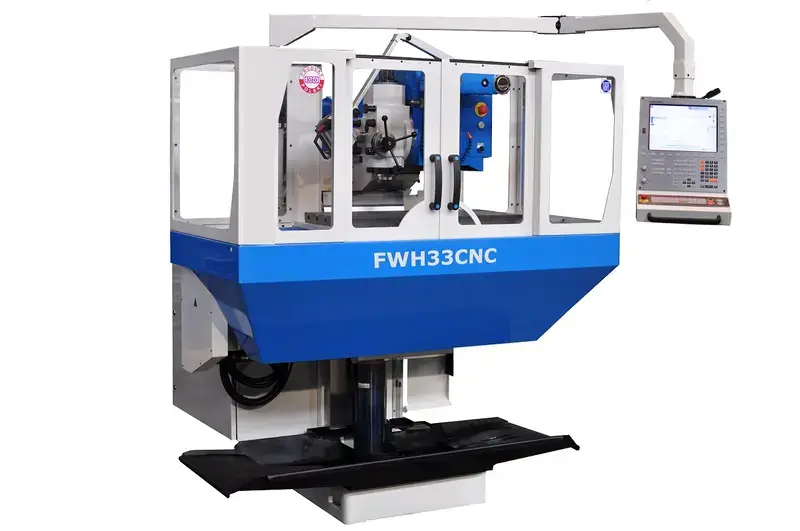

Milling Machine FWH33CNC
Modern, high-precision construction. The slanted bed (27°) ensures rigidity and a large machining area with compact dimensions.
- Control: SIEMENS ONE
- Working table: 400 x 800 mm
- Price: 367,000.00 PLN net (approx. 85,500.00 EUR)
- Machine weight: 2100 kg

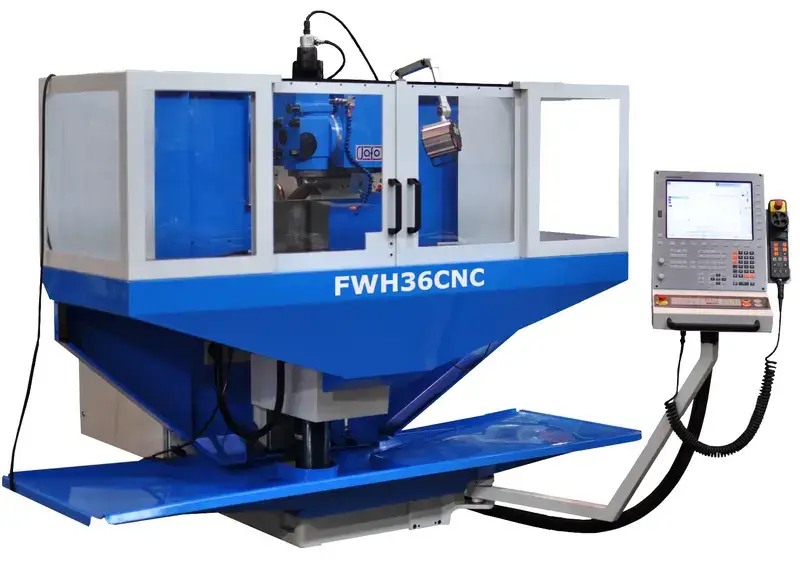

Milling Machine FWH36CNC
A larger model in the CNC series, featuring a cast iron body and slanted guideways at a 27° angle. Provides huge machining space while maintaining high precision.
- Control: Heidenhain TNC 620
- Working table: 450 x 1530 mm
- Price: 355,000.00 PLN net (approx. 82,500.00 EUR)
- Machine weight: 2550 kg

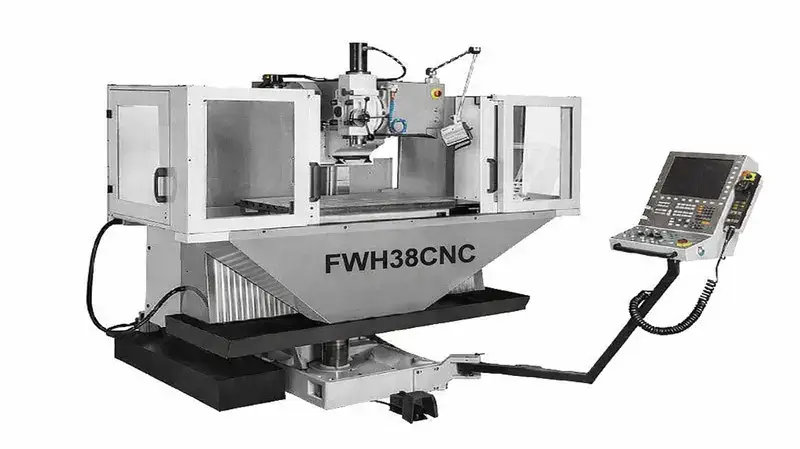

Milling Machine FWH38CNC
The most powerful model of the FWH family, designed for the most demanding industrial tasks. Offers a table of 500x900 mm and exceptional stability.
- Control: Heidenhain TNC 620
- Working table: 500 x 900 mm
- Price: 363,500.00 PLN net (approx. 84,500.00 EUR)
- Machine weight: 2650 kg

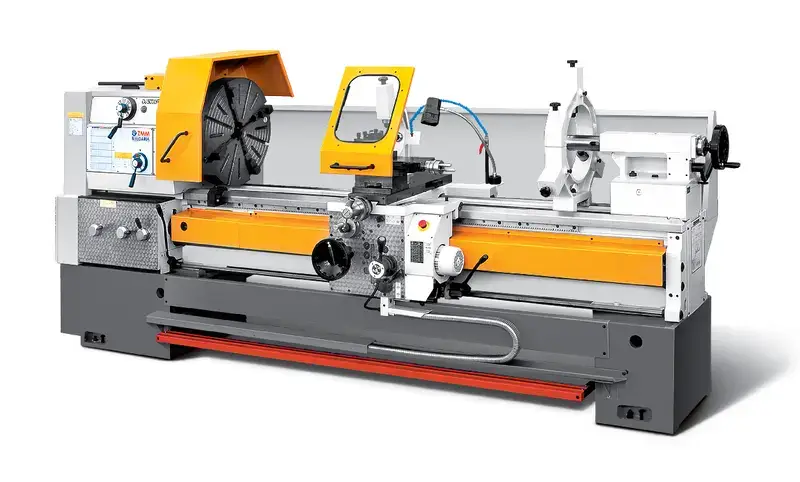

Lathe CU500MT
Professional metal lathe with increased turning parameters. Ideal as a universal lathe for efficient roughing and finishing.
- Lathe chuck: Bison-Bial 315 mm
- Distance between centers: 1000 - 5000 mm
- Price: 151,000.00 PLN net (approx. 35,000.00 EUR)
- Machine weight: 3250 kg
Milling Machine FWH33CNC
Modern, high-precision construction. The slanted bed (27°) ensures rigidity and a large machining area with compact dimensions.
Innovation and Compactness
- ● Vertical and horizontal milling capability
- ● Slanted bed for maximum stability
- ● Scraped box-type guideways
- ● Ball screws in 3 axes
- ● SIEMENS ONE control system
| TECHNICAL SPECIFICATIONS FWH-33CNC | |
|---|---|
| Working table | 400 x 800 mm |
| X-axis travel (longitudinal) | 600 mm |
| Y-axis travel (cross) | 500 mm |
| Z-axis travel (vertical) | 450 mm |
| Spindle taper | ISO 40 (DIN2080) |
| Speed range | 70 - 4000 rpm |
| Spindle motor power | 7,5 kW |
| Milling machine mass | 2100 kg |
| Price (SIEMENS ONE) | 367,000.00 PLN net (approx. 85,500.00 EUR) |
Milling Machine FWH36CNC
A larger model in the CNC series, featuring a cast iron body and slanted guideways at a 27° angle. Provides huge machining space while maintaining high precision.
Power and Versatility
- ● Vertical and horizontal milling capability
- ● Slanted bed (27°) for highest rigidity
- ● Scraped box-type guideways
- ● Large working table
- ● 4-axis machining option (optional)
- ● Heidenhain TNC620 control system as standard
| TECHNICAL SPECIFICATIONS FWH-36CNC | |
|---|---|
| Working table | 450 x 1530 mm |
| X-axis travel (longitudinal) | 650 / 800 mm (optional) |
| Y-axis travel (cross) | 475 mm |
| Z-axis travel (vertical) | 475 mm |
| Spindle taper | ISO 40 (DIN2080) |
| Speed range | 70 - 4000 rpm |
| Spindle motor power | 7,5 kW |
| Max. workpiece mass | 400 kg |
| Machine mass | 2550 kg |
| Price (TNC 620) | 355,000.00 PLN net (approx. 82,500.00 EUR) |
Milling Machine FWH38CNC
The most powerful model of the FWH family, designed for the most demanding industrial tasks. Offers a table of 500x900 mm and exceptional stability.
Top Performance
- ● Scraped box-type guideways
- ● Vertical and horizontal milling capability (0-140° head)
- ● Largest working table in the series: 500 x 900 mm
- ● High self-weight (2650 kg) ensuring vibration damping
- ● Modern Heidenhain TNC620 control system
| TECHNICAL SPECIFICATIONS FWH-38CNC | |
|---|---|
| Working table | 500 x 900 mm |
| X-axis travel (longitudinal) | 800 mm |
| Y-axis travel (cross) | 500 mm |
| Z-axis travel (vertical) | 475 mm |
| Spindle taper | ISO 40 (DIN2080) |
| Spindle speed range | 70 - 4000 rpm |
| Spindle motor power | 7,5 kW |
| Max. workpiece mass | 350 kg |
| Machine mass | 2650 kg |
| Dimensions (w/d/h) | 2450 x 2300 x 2200 mm |
| Price (TNC 620) | 363,500.00 PLN net (approx. 84,500.00 EUR) |
Lathe CU500MT
Professional metal lathe with increased turning parameters. Ideal as a universal lathe for efficient roughing and finishing.
Robustness and Efficiency
- ● Reinforced bed resistant to deformation (width 400 mm)
- ● Hardened guideways
- ● Wide range of spindle speeds (11.5 - 1400 rpm)
- ● Large spindle bore of 103 mm
- ● 315 mm Bison-Bial self-centering chuck
| TECHNICAL SPECIFICATIONS CU500MT | |
|---|---|
| Swing over bed | 500 mm |
| Swing over carriage | 300 mm |
| Swing in gap | 700 mm |
| Distance between centers | 1000 - 5000 mm |
| Bed width | 400 mm |
| Spindle bore | 103 mm |
| Spindle speed range | 11.5 - 1400 rpm |
| Main motor power | 7,5 (11) kW |
| Machine mass (for dcp=1000) | 3250 kg |
| Price (with Bison-Bial chuck) | 151,000.00 PLN net (approx. 35,000.00 EUR) |
Professional Service, Overhauls and Parts for JAFO Machine Tools
Do you own an older JAFO milling machine (FWD, FYD, FWA)? Grupa Marat is the only place where your equipment will undergo a professional capital overhaul using original parts and in accordance with the factory documentation.
- ✓ Capital overhauls and modernizations
- ✓ Installation of digital readout systems
- ✓ Sale of original spare parts
- ✓ Adaptation of machines to minimum health & safety requirements
JAFO Service Center
A dedicated team of technicians in Jarocin will ensure your machine maintains the highest precision for decades to come.
CNC Machines and Metal Machine Tools – Knowledge Base (FAQ)
Find answers to frequently asked questions about metal machine tools.
Advantages of modern CNC control
The use of systems such as Heidenhain TNC 620 or Siemens ONE in JAFO machines allows for full optimization of cutting processes. Advanced numerical control algorithms guarantee shorter processing times while maintaining the highest geometric accuracy parameters.
Metal milling machine selection criteria
When choosing a toolroom milling machine, the rigidity of the body and the thermal stability of the spindle are key. JAFO models, thanks to their cast iron construction and box-type guideways, minimize vibrations, which directly translates to surface finish quality and tool life.
Capital overhauls of JAFO machine tools
A capital overhaul at the JAFO Jarocin plant is a process of restoring the machine's factory geometry in accordance with the original technical documentation. This is the most effective way to modernize your machinery fleet while optimizing investment costs.
Turning performance on CU lathes
CU series metal lathes (e.g. CU500MT) are designed for high-performance longitudinal and cross turning. The large spindle bore and the use of precision Bison-Bial chucks allow for stable machining of heavy workpieces with diverse geometry.
Ask about a Machine
Fill out the form and our specialist will prepare an offer for you.
Looking for spare parts or a new CNC machine?
Our experts will advise you on choosing the best solution for your production. Contact us directly:
MARAT Sp. z o.o. | JAFO Jarocin Branch
ul. Zaciszna 14, 63-200 Jarocin, Poland
